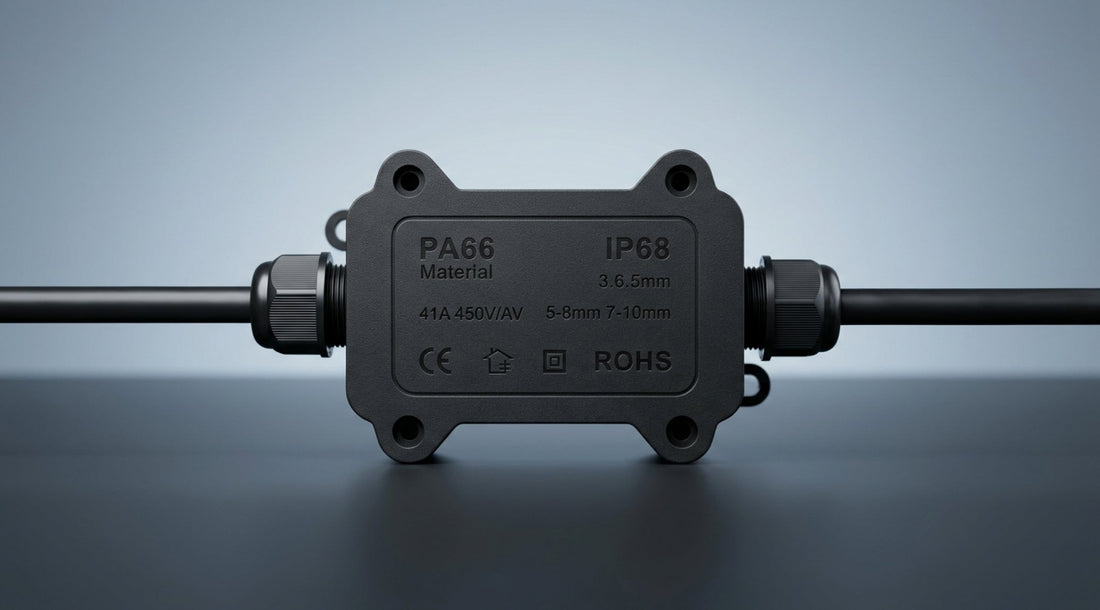

How to Connect Two Outdoor Cables Safely (Using an IP68 2-Way Junction Box)

Connecting outdoor cables safely is something every homeowner, DIY enthusiast, or installer inevitably faces when setting up garden lights, floodlights, CCTV cameras, or other outdoor electrical equipment. The key to keeping these connections safe, dry, and long-lasting is using a proper IP68 2-way junction box, especially when weather, moisture, and outdoor elements are involved. An IP68 enclosure isn’t just another electrical box — it’s a specialized waterproof solution designed to protect your wiring against dust, rain, and even temporary submersion in water.

In this comprehensive guide, we’ll walk you through everything you need to know — from understanding why outdoor connections require special care, to choosing the right junction box, installing it correctly, sealing it for waterproof protection, and avoiding common pitfalls that can compromise safety. By the end of this article, you’ll be confident in performing a secure connection that can withstand the elements and last for years.

Understanding Outdoor Cable Connections

Why Outdoor Connections Need Protection

Outdoor cable connections are exposed to weather, moisture, dust, and temperature changes — conditions that simply don’t exist indoors. Moisture intrusion into electrical connections can cause shorts, corrosion, and potentially dangerous electrical faults. That's why outdoor electrical installations need waterproof protection to ensure reliability and safety. Waterproofing also reduces the risk of damage to connected devices such as lights, pumps, or cameras.

What is an IP68 Rating?

When we refer to a junction box as IP68 rated, we’re talking about a high level of protection against water and dust. The “IP” stands for Ingress Protection, and IP68 means the enclosure is dust-tight and capable of withstanding continuous immersion in water under specified conditions. In practical terms, this means an IP68 box can keep electrical connections safe even in heavy rain or underwater up to certain depths specified by the manufacturer.

What is a 2-Way Junction Box?

Definition and Purpose

A 2-way junction box is a waterproof enclosure with space for two cables to connect inside a protected terminal. This lets you join two outdoor cables safely, whether you're extending the feed to another fixture or powering two devices from one line. Inside these boxes are terminal blocks or connectors that make it easy to securely join conductors.

Typical Use Cases

Connecting landscape lighting to the mains cable
Repairing a damaged portion of outdoor cable
Extending power to outdoor outlets or devices
Joining outdoor sensor lights or garden project wiring
Connecting speakers or audio systems exposed to weather, with waterproof protection for electrical continuity

Choosing the Right IP68 Junction Box

Material and Durability

When choosing a junction box, look for materials that are durable, UV-resistant, and capable of withstanding outdoor conditions — such as PA66 plastic or polycarbonate housing with silicone sealing gaskets. These materials resist cracking, corrosion, and weathering. Waterproof boxes also typically include rubber sealing rings that press around cable entries to prevent water ingress.

Size and Cable Compatibility

Outdoor junction boxes come in various sizes and shapes. A 2-way box should have two entry points with rubber grommets that can handle the diameter of your cables (often within a range like 5-12 mm depending on your cable spec). Ensure the box you select accommodates the number and size of cables you intend to connect.

Safety Precautions Before You Start

Turning Off Power

Before doing any cable connection, make sure the power is completely switched off at the breaker or fuse box. Working with live wires can result in serious injury, electrical shock, or equipment damage.

Tools You’ll Need

Screwdriver (usually flat or Phillips depending on terminal block)
Wire stripper
Cable cutters
Appropriate junction box with sealing grommets
Rubber gloves and safety glasses (recommended for extra protection)

Step-by-Step Guide to Connecting Two Outdoor Cables

Preparing Your Work Area

Choose a work area that is dry and safe, and lay all your tools and junction box components out so you can work in a clear and organized way.

Strip the Cable Insulation Correctly

Remove the outer insulation from your cables carefully, exposing just enough inner wires to insert into the terminal block. Not stripping them properly can expose too much conductor or damage the wire.

Insert Cables into Terminal Block

Once stripped, insert each conductor into the appropriate terminal position inside the box. Then tighten the screws on the terminal block to ensure a firm, secure electrical connection.

Securing Cables with Waterproof Grommets

Pick the correct size sealing grommets for your cable diameter and place them over the cables before pushing them into the entry holes. Tighten the gland or screw cap firmly to compress the gasket and form a watertight seal.

Closing and Sealing the Junction Box

Place the waterproof O-ring or gasket around the lid of the box and align it carefully. Tighten all screws evenly to compress the gasket against the housing — this forms the IP68 waterproof seal. A poorly sealed box can let moisture enter and defeat the purpose of the enclosure.

Tips for Ensuring a Waterproof Seal

Always ensure the sealing rubber sits flush and there are no twists in the gasket.
Tighten all cable glands and lid screws evenly uneven tightening can create gaps.
Choose entry points on the side or bottom of the box to minimize direct rainwater exposure.
Inspect cables for damage and make sure the insulation is intact where it enters the box.

Common Mistakes to Avoid

A few mistakes can compromise your connection’s safety:

Ignoring cable size compatibility using too large or too small grommets will not seal properly.
Poor stripping technique that damages conductors.
Overtightening screws which can crack the housing or deform gaskets.
Not securing cables internally, causing strain on the connection points.

Maintenance and Long-Term Reliability

Regularly inspect your junction box for signs of wear, loose screws, or degraded sealing rings, especially after seasonal changes or severe weather events. A properly sealed junction box should last many years but replacing old or damaged rubber grommets can maintain its effectiveness.

Conclusion

Connecting two outdoor cables safely doesn’t have to be complicated — but it does require the right equipment and careful execution. An IP68 2-way junction box is a reliable, effective way to protect outdoor electrical joins against water, dust, and the rigors of outdoor environments. Whether you’re powering garden lights, CCTV systems, or outdoor appliances, following proper installation steps ensures both safety and long-term performance.

Unique FAQs

1. What does IP68 mean in simple terms?
IP68 means the junction box is fully dust-proof and can withstand sustained water immersion to specified depths, making it ideal for outdoor conditions.

2. Can I bury an IP68 junction box underground?
Yes, many IP68 boxes are suitable for underground use — but ensure you pick the right size and check manufacturer depth ratings.

3. Do I need a junction box for every outdoor cable connection?
Yes, using a proper waterproof junction box greatly improves safety and extends the life of your outdoor wiring.

4. How often should I check my outdoor junction box?
Inspect annually and after major weather events to maintain a secure waterproof seal.

5. Is an IP68 box better than IP66?
Yes, IP68 offers deeper water protection than IP66, making it superior for wetter environments.
